Aquaplex

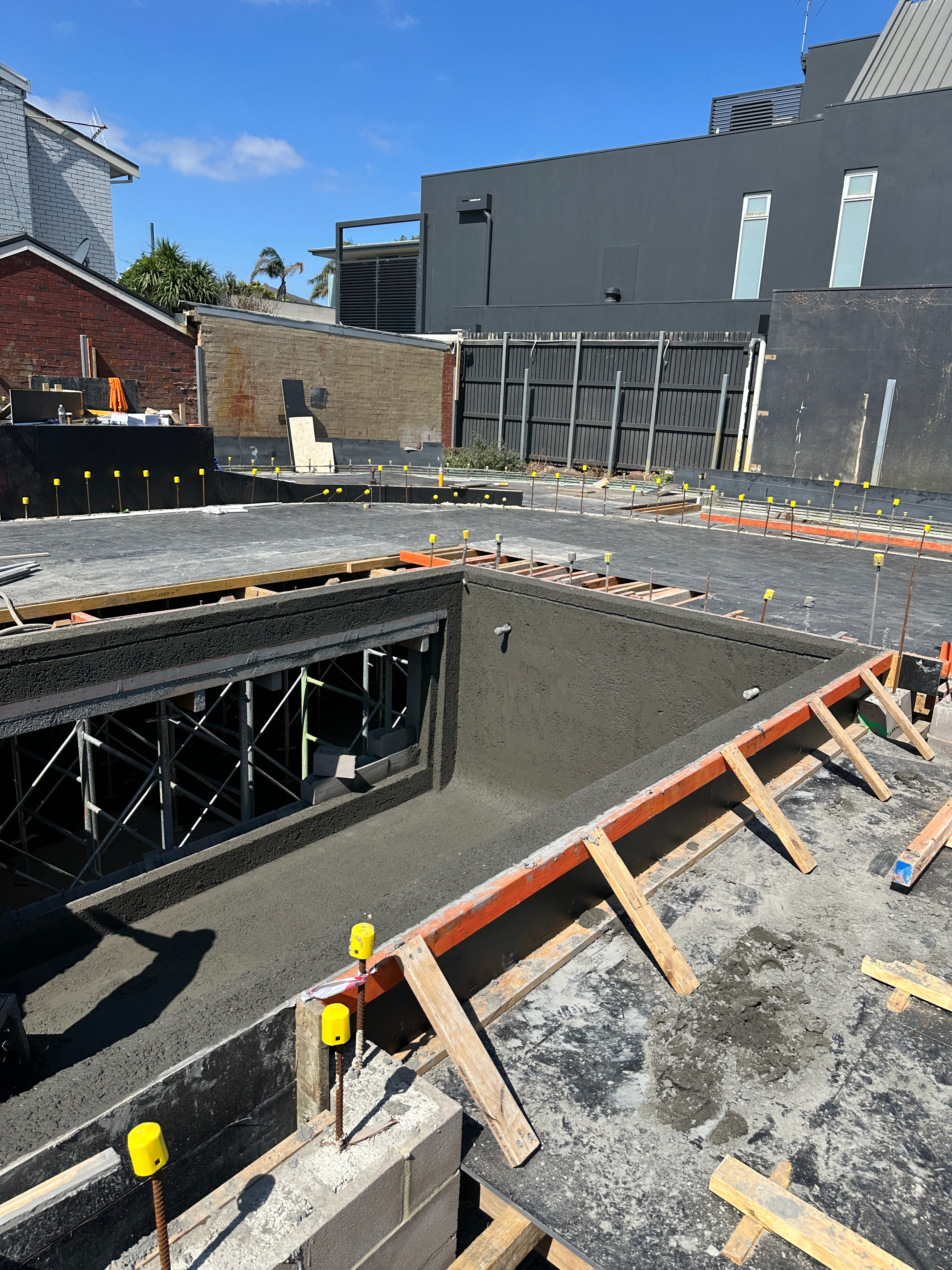

Brighton Residence pool construction showing concrete formwork and structural preparation for twin acrylic panel installation

Brighton Residence

Built by Hazler Pools

Acrylic Panel Installation

Project Details

LocationBrighton, Victoria
SystemWall View - 4-Sided Vertical System
ConfigurationTwin Panel Installation
Viewing Size4025 x 1420 x 80 mm
Panel WeightApprox. 675 kg each
StatusUnder Construction

Overview

The Brighton Residence project demonstrates the integration of large-format acrylic viewing panels into a premium residential concrete pool structure. The installation required precise structural coordination, engineered rebates, and reinforced concrete detailing to achieve a seamless finished appearance.

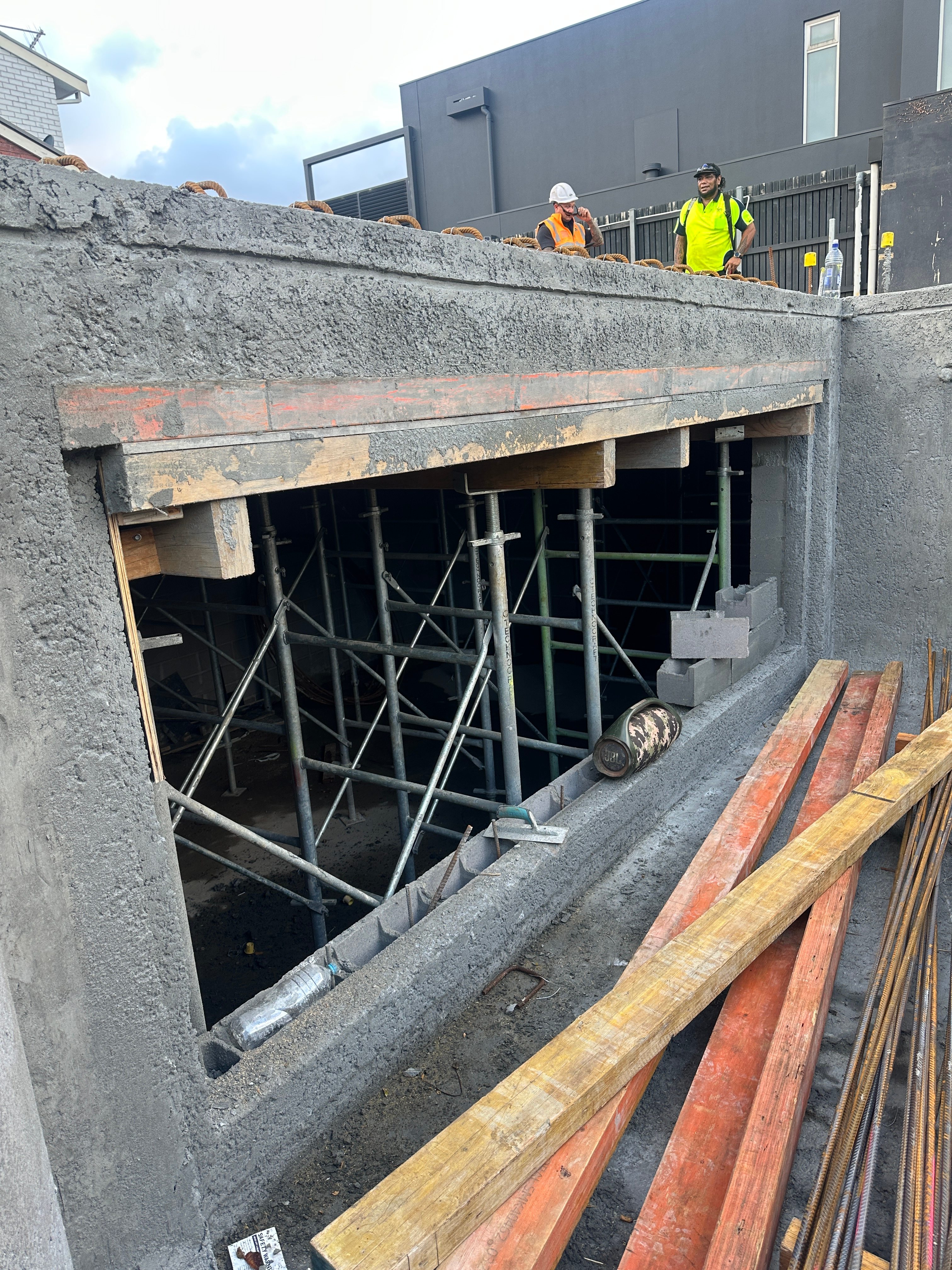

Construction workers overseeing the Brighton Residence pool panel installation with scaffolding and concrete formwork

Construction Progress

Concrete pool deck with formwork and rebar preparation for acrylic panel opening
Construction workers on site with scaffolding visible through panel opening

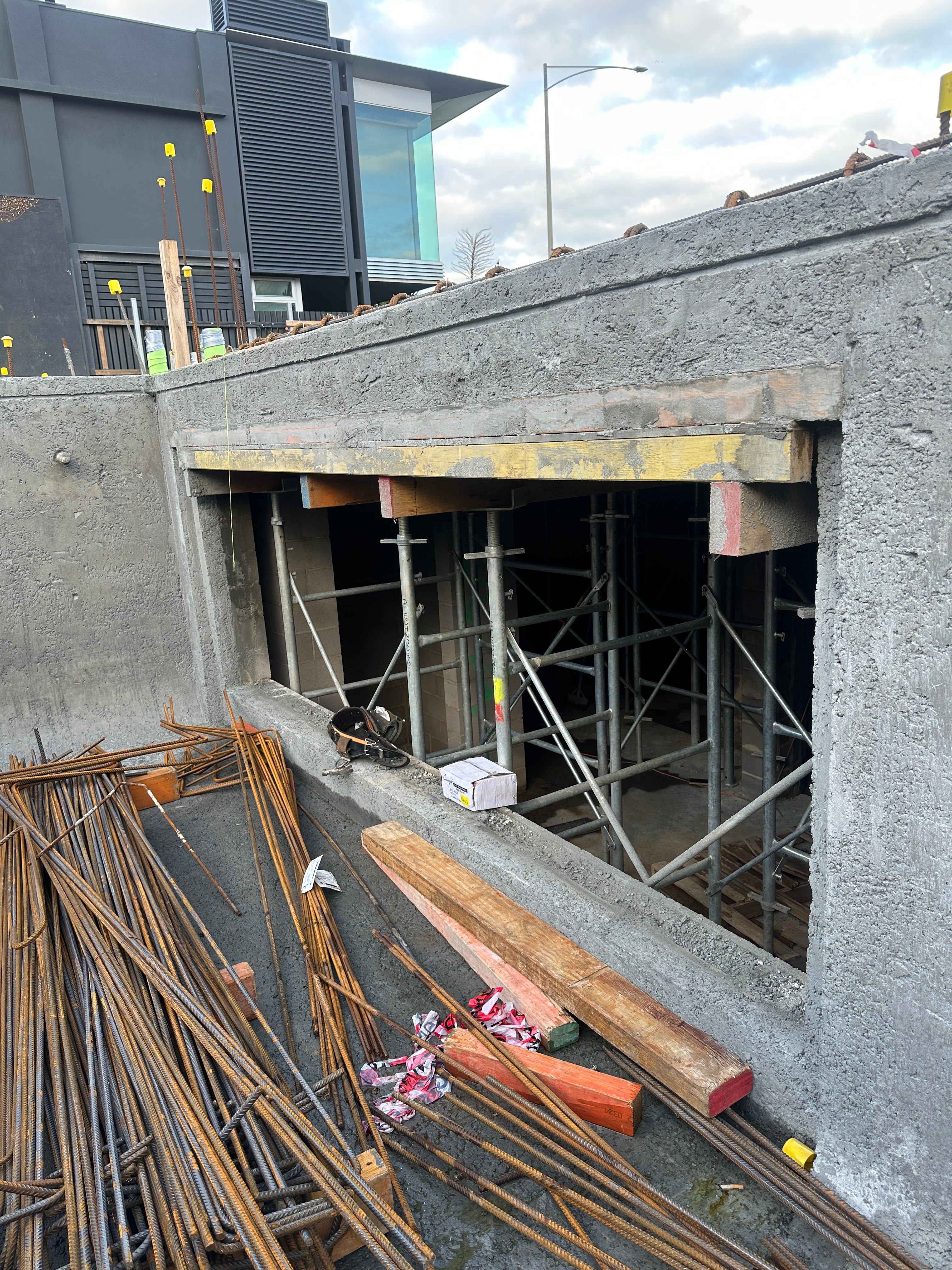

Pool wall construction showing rebar bundles and scaffolding structure
Concrete pouring operation with workers and scaffolding framework

Panel Fabrication

Acrylic panel height measurement at 1705 millimetres
Acrylic panel length measurement at 4185 millimetres
Black painted acrylic panel edge detail, 80 millimetre finish dimension
Black painted acrylic panel finish detail, 200 millimetre dimension
Acrylic panel thickness being checked against the production drawing
Completed full-size acrylic pool window panel in its black frame
Height measurement of the second Brighton acrylic panel at 1705 millimetres
Length measurement of the second Brighton acrylic panel at 4185 millimetres
Paint finish dimension detail on the second acrylic panel
Painted edge dimension detail on the second acrylic panel
Thickness check on the second completed acrylic panel
Second completed acrylic pool window panel in the fabrication workshop

Project Documentation

Builder dimensions and the signed production drawing were used to verify the acrylic panels before fabrication.

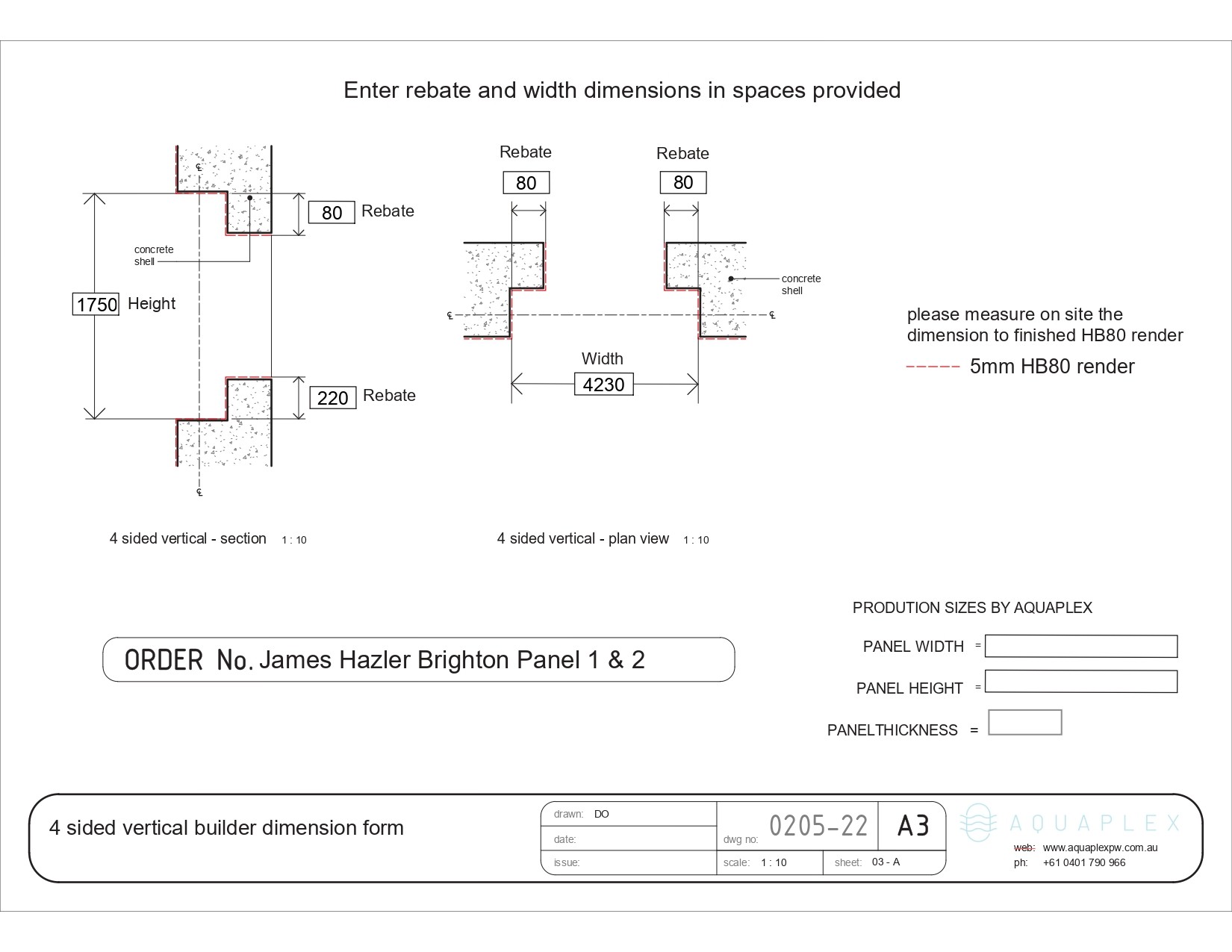

Builder Dimension Form

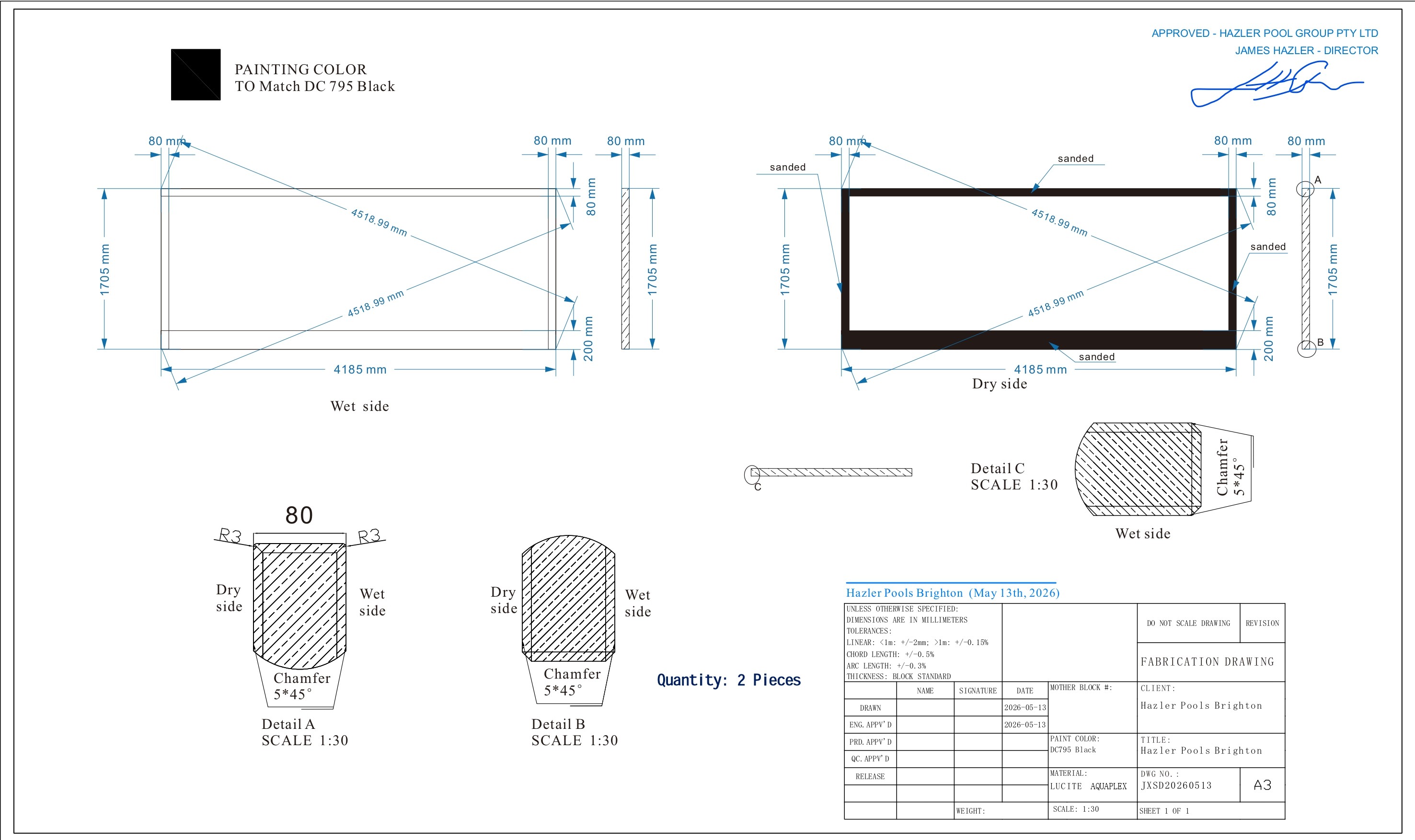

Signed Shop Drawing · 13 May 2026

Original production drawing including the builder's approval signature.

High-resolution page 1 of the original signed Hazler Pools Brighton shop drawing, including the builder approval signature and fabrication dimensions
